How to Install Laminate Flooring Around Pipes: The Diameter + 20 mm Rule

Installing laminate flooring around plumbing pipes requires drilling a hole equal to the pipe’s outer diameter plus 20 mm — providing a 10 mm expansion buffer around the full circumference — and securing any puzzle-cut plank sections with D2-grade waterproof glue rated for continuous moisture exposure.

In Tampa Bay homes, where copper supply pipes and PVC drain lines penetrate slab-on-grade at fixed positions, an undersized hole effectively anchors the floating floor to the subfloor at that point. When summer humidity drives laminate expansion, the floor cannot move freely — and the resulting pressure buckles planks or fractures click-lock joints within 4–8 meters of the obstruction.

Why Does a Pipe Penetration Without Expansion Clearance Cause Floor Failure?

A pipe penetration without the 10 mm expansion buffer creates a mechanical anchor point in the floating floor system. Laminate flooring is a hygroscopic material — the HDF core absorbs ambient moisture and expands perpendicular to installation direction.

In Tampa Bay homes, where indoor humidity fluctuates between 45 % (AC-maintained) and 75 % (windows open during spring), the floor expands 0.5–1.2 mm per linear meter per full humidity cycle. When a plank is cut flush against a pipe, that expansion has no path: the floor pushes against the pipe, generating internal compression. The planks nearest the pipe buckle upward — a failure known as peaking — within the first two full seasonal cycles.

How Is the Correct Pipe Hole Diameter Calculated?

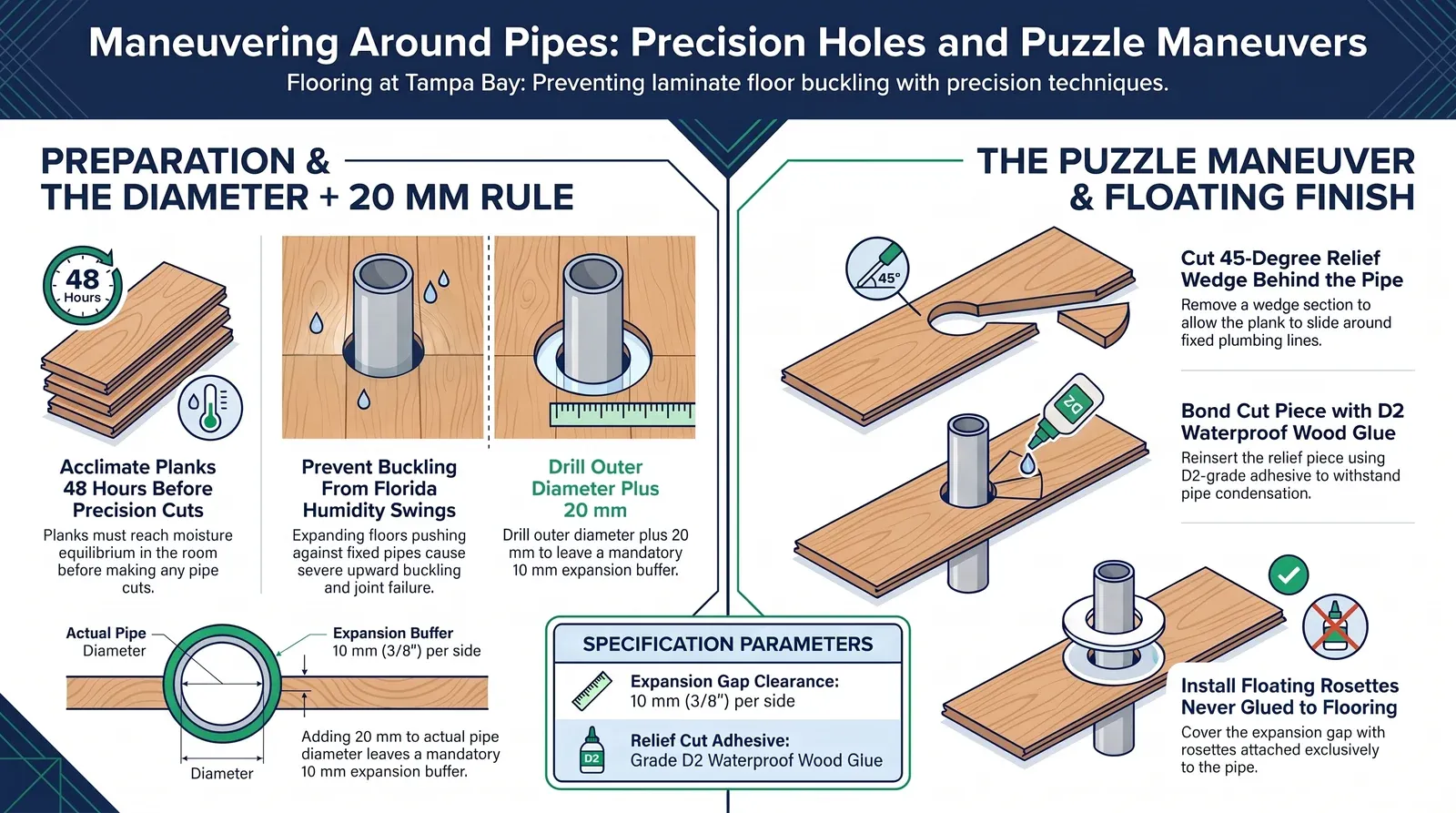

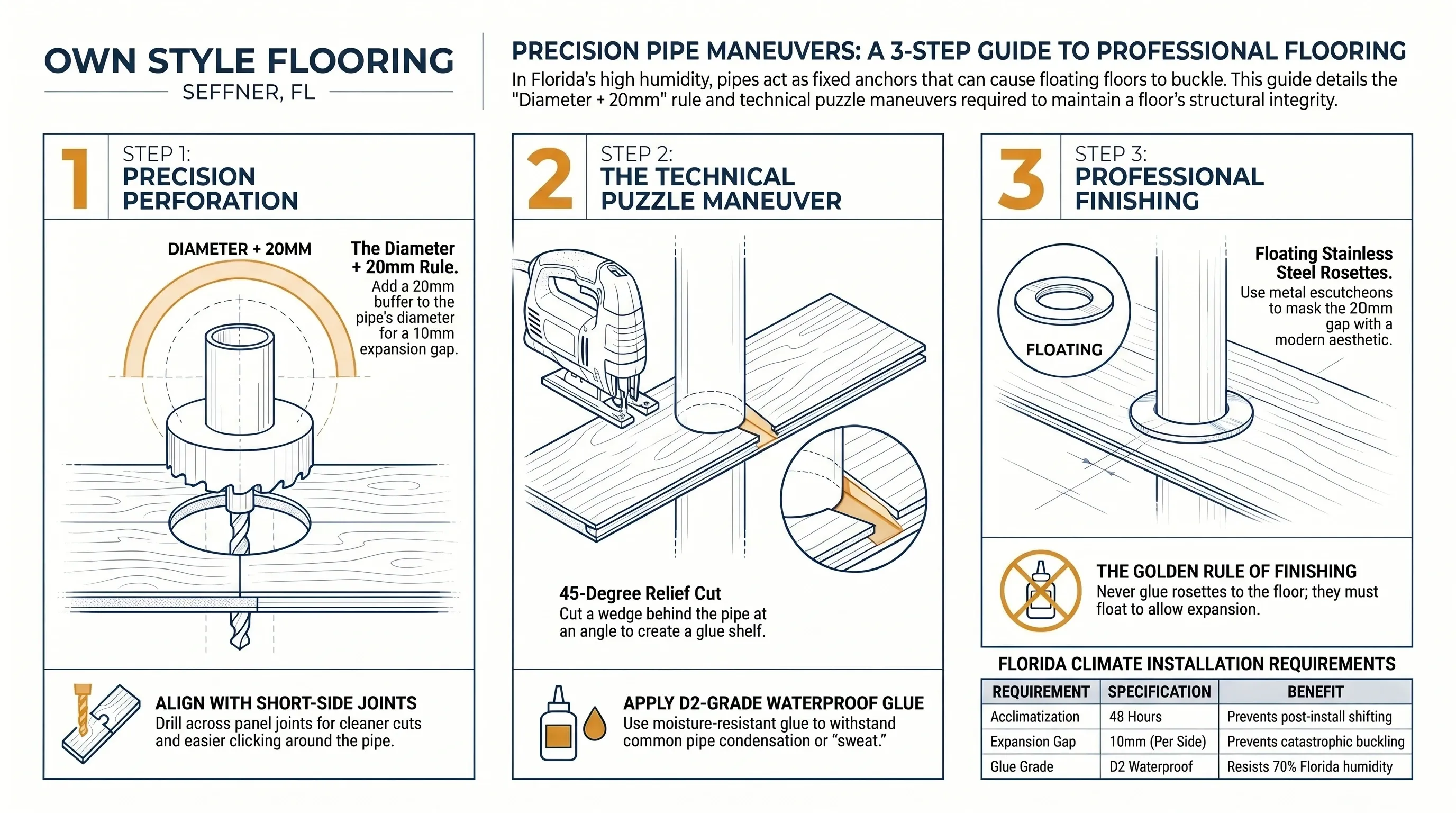

The Diameter + 20 mm rule calculates the required hole diameter by adding 20 mm to the pipe’s exact outer diameter, providing a consistent 10 mm expansion gap around the full circumference on every side of the pipe.

Pipe type	Nominal size	Typical outer diameter	Required hole (+ 20 mm)
Copper supply	1/2”	15.9 mm	36 mm
Copper supply	3/4”	22.2 mm	42 mm
PVC drain	1.5”	48 mm	68 mm
PVC drain	2”	60 mm	80 mm
Steel radiator	1”	33.4 mm	53 mm

The measurement must be taken from the pipe’s outer diameter — not the nominal pipe size printed on the supply order. Nominal sizes are smaller than actual outer diameters for most residential plumbing materials.

What Is the Puzzle Cut Method?

The puzzle cut method is required when the pipe position falls in the center of a plank — making it impossible to click two separate pieces around the pipe using the standard 20–25 degree tilt method.

The puzzle cut removes a wedge-shaped section from behind the pipe hole at a slight 45-degree back-angle, creating a kerf that locks under compression rather than opening under lateral load. The installer slides the main plank into position, then applies D2-grade waterproof glue to the puzzle wedge edges and reinserts the piece using a pull bar.

D2-grade classification per EN 204 is the minimum bond standard for pipe-adjacent joints in Florida residential installations due to copper pipe condensation common during summer.

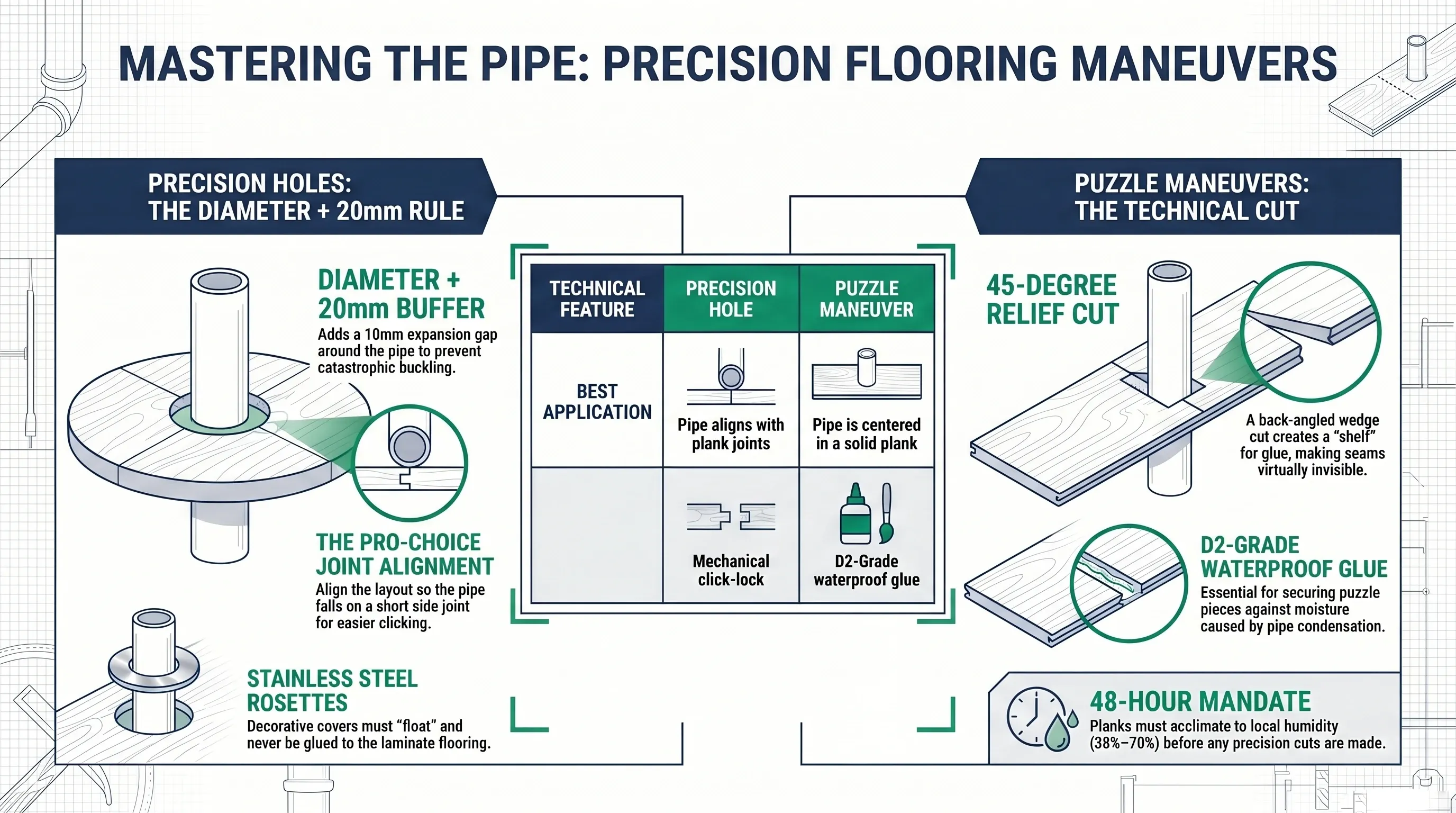

Why Must the Rosette Float Over the Floor?

Stainless steel rosettes (escutcheons) cover the visible gap around the pipe without anchoring the floor. Securing a rosette to the laminate plank — with glue, screws, or caulk — eliminates the 10 mm expansion buffer the Diameter + 20 mm rule created.

A rosette fixed to the floor acts as a secondary anchor point identical in effect to cutting the hole flush. Rosettes must be secured exclusively to the pipe or the subfloor — never to the laminate surface. Stainless steel (Grade 304) is the specified material; plastic rosettes crack under thermal expansion within 3–5 years.

How Does Florida Pipe Condensation Affect the Puzzle Cut Bond?

Copper and steel pipes produce surface condensation during summer, when cold water supply lines contact humid interior air. Standard interior wood glue (D1-grade per EN 204) loses 40–60 % of bond strength when subjected to repeated wetting and drying cycles.

D2-grade waterproof glue (minimum 6 hours soak resistance per EN 204) maintains structural bond integrity through repeated condensation cycles. D2-grade adhesive should be used on all pipe-adjacent puzzle cuts regardless of pipe material — PVC pipes also conduct cold water and produce condensation in high-humidity conditions.

What Is the Correct Approach for Two Pipes in Close Proximity?

Double-pipe penetrations — common under bathroom vanities and behind toilets in slab-on-grade homes — require measuring the exact center-to-center distance between pipes, then marking both hole positions on the plank simultaneously before drilling. Each hole is sized independently using the Diameter + 20 mm formula.

When pipes are closer than 80 mm center-to-center, the installer cuts a single straight relief section encompassing both holes and the material between them — then glues and reinserts the piece as a single unit. Attempting two separate puzzle cuts on closely spaced pipes creates a structural gap between the relief sections that collapses under foot traffic load.

What Mistakes Cause Most Pipe Penetration Failures in Tampa Bay Homes?

Most pipe-penetration failures trace back to a small set of repeatable shortcuts rather than a defective plank, and each one is preventable with the correct tool and measurement before the first hole is drilled.

• Measuring from nominal pipe size instead of actual outer diameter — a 1/2” copper line’s true 15.9 mm outer diameter gets treated as exactly 1/2” (12.7 mm), undersizing the hole and eliminating the expansion buffer entirely.
• Securing the rosette to the laminate plank instead of the pipe or subfloor — recreates the same rigid anchor point the Diameter + 20 mm hole was cut to avoid.
• Skipping D2-grade glue on puzzle cuts near copper supply lines — standard interior wood glue fails within one Tampa Bay summer of pipe condensation cycling.
• Cutting pipe holes before the laminate has acclimated — a plank cut at 48 hours instead of the full 72-hour window keeps expanding after installation, closing the gap from the inside.
• Ignoring the subfloor’s moisture condition near the penetration — a slab reading above 4 % moisture content near a drain line accelerates HDF core swelling exactly where the floor has the least room to move.

Every one of these mistakes shows up during a final walkthrough, not during rough-in, which is why catching them before the flooring crew leaves the site matters more than catching them during a warranty call a year later. Replacement calls in Brandon and Riverview homes trace back to these same five mistakes far more often than to defective material.

How Should Pipe-Adjacent Cuts Be Timed Around Florida’s Humidity Seasons?

Pipe penetrations cut during Tampa Bay’s June-through-September wet season carry more risk than the same cut made in the dry season, since the laminate core is already closer to its expanded dimensional limit when the blade goes in.

• Wet season cuts (June–September): allow the full 72-hour acclimation window before cutting, and re-verify the 10 mm gap after the first 30 days once the plank has settled into the room’s humidity.
• Dry season cuts (October–May): the standard 48–72 hour acclimation window is normally sufficient, though a slab reading is still required near any drain or supply line.
• Year-round standard: as of 2026, no pipe penetration in a Hillsborough County installation should proceed without a documented outer-diameter measurement and a moisture check of the subfloor near the pipe.

A vapor barrier under the laminate does not change the pipe-hole formula, but it does reduce how much ambient moisture the HDF core absorbs between the acclimation period and the final humidity cycle the floor settles into.

---
