Planimetry Limits in Concrete Slabs: Correcting Uneven Subfloors Before Flooring Installation

Concrete slabs must meet a planimetry tolerance of 3 mm deviation per 1 meter — or 2 mm per meter for rigid click-lock systems — before laminate installation. Measured with a straightedge per ASTM E1155 and DIN 18202, this threshold protects click-lock joints from the vertical stress created when planks bridge over valleys or ridges.

In Hillsborough County’s older housing stock, planimetry failure is the second-most frequent cause of creaking and joint damage after moisture. Settled slabs, additions poured separately from the original foundation, and patch repairs over old plumbing all produce localized peaks and valleys that a visual inspection cannot detect. A slab that looks flat to the eye regularly fails the straightedge test, because the 3 mm tolerance is tighter than what the human eye can judge.

The Flatness Rule: Why Precision Is Non-Negotiable

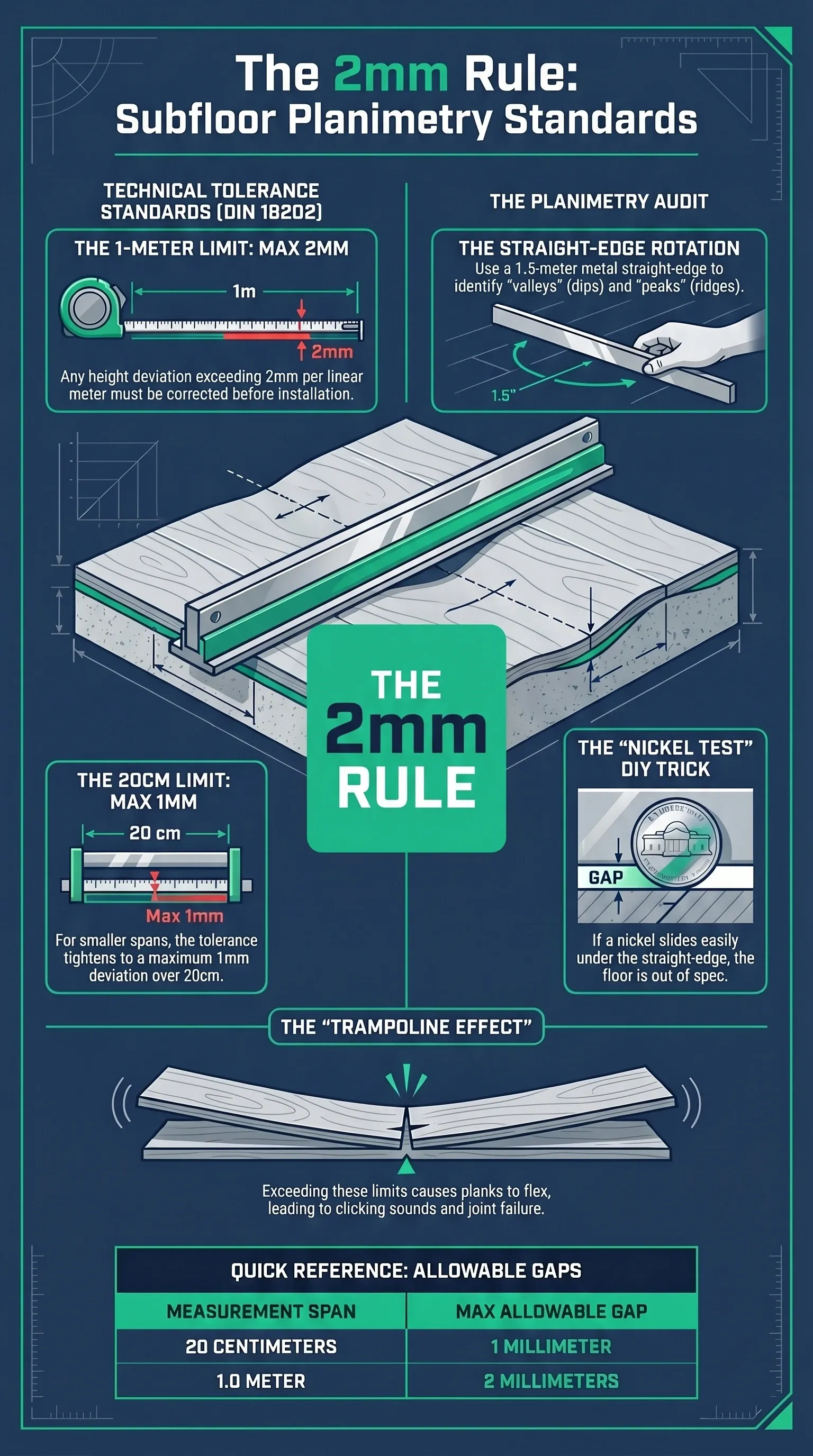

In professional flooring, flat is an engineering requirement, not a visual impression. DIN 18202 Table 3, Row 3 sets the limit at 3 mm of height difference per meter on the finished subfloor. Most laminate manufacturers tighten this to 2 mm per meter in their installation guides, and for shorter spans the tolerance narrows further to 1 mm over 20 cm.

When someone walks across a laminate floor that was not properly leveled, the planks flex into the hollow spaces below. This bridging creates friction inside the locking joints and produces the clicking or popping sound known as the trampoline effect — a mechanical symptom, not a cosmetic one.

Testing the Slab: The Straightedge Method

A planimetry audit happens before a single plank is laid. A professional-grade aluminum straightedge, 1.5 to 2 meters long, is rotated across the room in multiple orientations to map every valley and peak. The straightedge method per ASTM E1155 remains the industry standard for on-site flatness verification in Florida installations.

A single pass in only one direction misses ridges or valleys running perpendicular to it. This is a common shortcut, and it produces an incomplete map that leaves problem areas undetected until planks are already installed over them. A full-room audit takes longer than most homeowners expect for exactly this reason.

A planimetry audit checks for:

• Valleys (dips) that cause planks to bridge and flex under foot traffic
• Peaks (ridges) that concentrate vertical load on the joints of adjacent planks
• Transition zones between the original slab and a later addition poured at a different time
• Sunken or raised patches near old plumbing repairs

Corrective Measure 1: Self-Leveling Mortar for Widespread Depressions

For widespread valleys or sloping floors common in older Tampa Bay homes, high-flow self-leveling mortar is the standard correction. The process follows a fixed sequence, and skipping a step compromises the pour: priming, perimeter sealing, pouring with de-aeration, and controlled thickness across multiple layers when depth requires it.

1. Priming — A bonding agent prevents the porous slab from absorbing water from the mortar too quickly, which causes cracking and delamination.
2. Perimeter sealing — Closed-cell foam strips seal every edge, preventing liquid mortar from leaking into wall cavities.
3. Pouring and de-aeration — A spiked roller removes trapped air bubbles that create structural weak points.
4. Thickness control — Most professional-grade SLU products have a maximum single-pour depth of 25 mm per manufacturer TDS. Exceeding this requires multiple pours with 24-hour cure cycles between layers.

Strict drying times apply at every stage. Rushing the cure traps residual moisture under the new floor, creating the exact condition — elevated subsurface humidity — that a moisture barrier and CM testing are meant to prevent in the first place.

Corrective Measure 2: Mechanical Grinding for High Spots

Ridges typically form at concrete pour joints or where plumbing repairs disturbed the original slab. Pouring more leveler over a ridge only raises the surrounding floor height, which risks interfering with door clearances. The correction instead removes material: industrial diamond cup grinders connected to HEPA-filtered vacuums grind the high spot down to tolerance.

Grinding is a dusty, intense process that demands professional-grade dust control. A HEPA-filtered vacuum attached directly to the grinder head keeps fine concrete silica dust from settling into every adjoining room — a standard shop vacuum’s filtration is not fine enough to contain particles this small.

Corrective Measure 3: Dry Leveling with Fine Aggregates

For minor, localized dips where installation time is critical, calibrated sand or marble dust — particles screened to 0.5–2 mm diameter — fills depressions without introducing moisture. This method allows immediate underlayment and plank installation, but it only works for shallow corrections of 3–5 mm in low-traffic areas.

Deeper fills shift under concentrated furniture loads, recreating the original planimetry problem within months. Dry leveling works as a targeted patch, not a substitute for self-leveling mortar or grinding across a wider area of a Tampa Bay slab.

Which Correction Method Fits Which Situation?

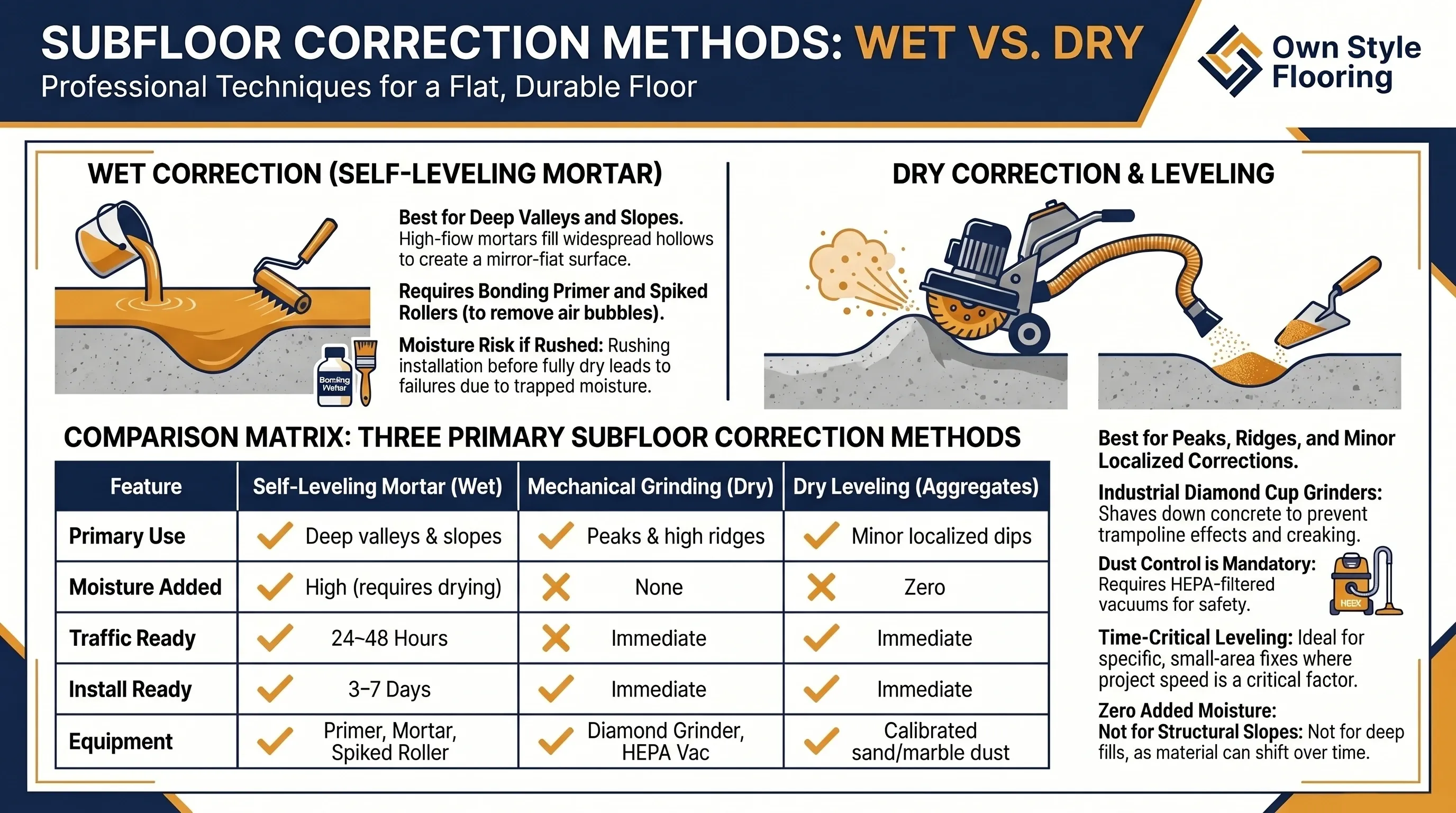

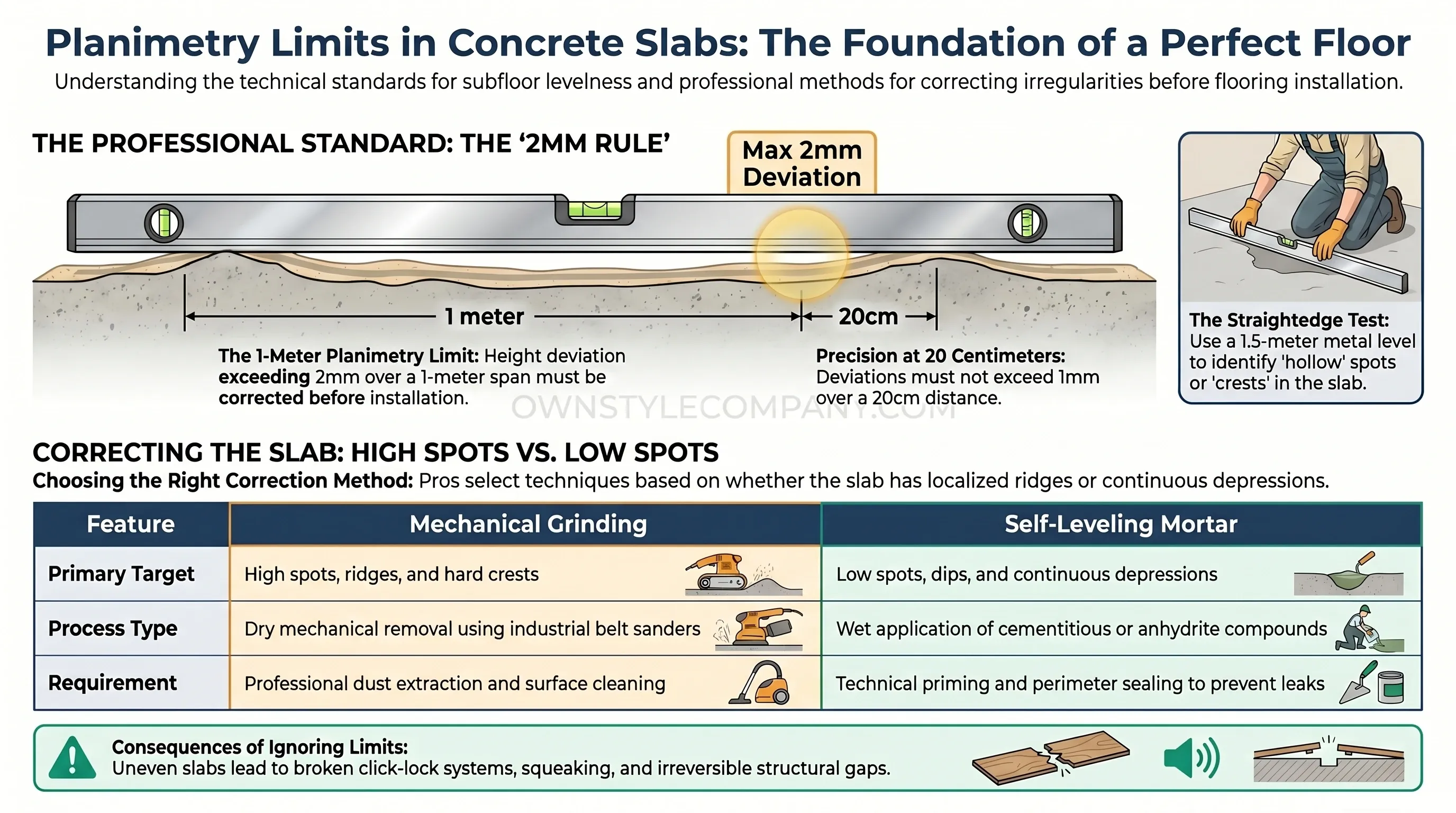

Three corrective paths exist, and the right one depends on the defect type, not homeowner preference. Valleys call for self-leveling mortar, peaks call for grinding, and only minor shallow dips qualify for dry leveling. The table below compares moisture impact and installation timeline for each method.

Method	Best for	Moisture added	Traffic-ready	Install-ready
Self-leveling mortar	Deep valleys, sloped floors	High — requires drying	24–48 hours	3–7 days
Mechanical grinding	High spots, ridges	None	Immediate	Immediate
Dry leveling (fine aggregate)	Minor localized dips (3–5 mm)	None	Immediate	Immediate

Why Can’t High Spots Just Be Filled Along With the Low Ones?

Filling raises the entire reference plane, and a high spot is already at or above where the finished floor needs to sit. Pouring self-leveler over a ridge to even it out with surrounding valleys only works if the ridge is ground down first.

Otherwise the leveler follows the existing high point upward, and the room’s overall floor height climbs enough to interfere with door clearances, transition heights, and cabinet toe-kicks measured against the original slab elevation. This is why a planimetry audit maps peaks and valleys separately — the two conditions require opposite corrective actions, not one pour that treats the whole room the same way.

The Danger of the “Springy” Floor

Ignoring planimetry produces a “springy” or “bouncing” sensation underfoot. This is not merely a comfort issue — it is a structural death sentence for laminate. Floating floors move as a single unit. When one section sinks into a dip while the adjacent section rests on a ridge, the HDF core is subjected to cleavage forces. Within six months, tongue-and-groove joints fracture, and visible gaps form between planks that no amount of re-tapping can close.

Professional Leveling as Investment Protection

Many DIY guides suggest that a thick underlayment can hide an uneven floor. This is a dangerous myth — standard underlayment corrects only micro-irregularities of ≤ 1 mm, the PC conformability value. Using thick, soft foam to bridge a 5 mm gap actually makes the problem worse by increasing vertical plank movement. Professional subfloor correction ensures the foundation is engineered to last. Our subfloor preparation labor is $1 per square foot; see our published prices for the full list.

How Common Is Planimetry Failure in Tampa Bay Specifically?

Planimetry failure is more common in Tampa Bay than in newer-construction markets, largely because of how much of Hillsborough County’s housing stock — from older Brandon and Riverview neighborhoods to slab-on-grade additions poured decades apart — predates current slab-flatness practices. Settled foundations, additions poured at a different time than the original slab, and patch repairs over old plumbing are the most frequent sources of localized peaks and valleys.

A slab that looks visually flat to the eye can still fail the straightedge test, since the 3 mm tolerance is tighter than what normal-looking concrete regularly achieves. That gap between appearance and measurement is exactly why the test is done with a tool, not a walk-through.

Signs Your Slab May Need Leveling

Several warning signs point to a planimetry problem before a straightedge ever touches the slab. None of them confirm failure on their own, but any one of them justifies a professional audit before flooring goes down in a Florida home.

• Visible slope when a marble or ball rolls freely across the room
• A rocking sensation when standing on existing tile or old flooring near a suspected patch
• Daylight visible under a straightedge or long level placed flat on the slab
• A slab section added years after the original pour, especially over a plumbing repair
• Cracks radiating from one point, often a sign of differential settlement

---
